Phoenix Blocks - PHNX 3211813 PT 6
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564946564
Amperage - 41 Amp
Applications - Railway Industry, Machine Building and Plant Engineering Applications
Catalog Number - 3211813
Color - Gray
Packaging
1 ea
EAN
Part #
217744
Catalog #
3211813
Commercial reference
3211813
12-Digit UPC:
463564946564
Amperage:
41 Amp
Applications:
Railway Industry, Machine Building and Plant Engineering Applications
Catalog Number:
3211813
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3211813 PT 6
Family Brand Name:
Phoenix
Heights:
42.2 mm
Length:
57.7 mm
Material:
Nylon, Polyamide
Type:
Single-Level, 2-Position
Voltage:
1000 Volt
Widths:
8.2 mm
Wire Size:
20-8 AWG
SoneparProductId:
SKU_US_73826038

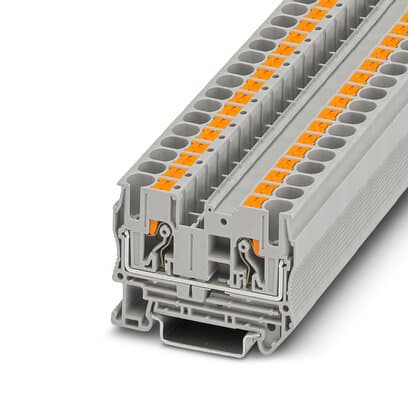

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Push-in connection, Rated cross section: 6 mm., cross section: 0.5 mm. - 10 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; PRS; NK; ATEX; IECEE CB Scheme; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
