Phoenix Blocks - PHNX 3211903 PT 4-HESILED 24 (5X20)
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564825302
Amperage - 6.3 Amp
Applications - For Railway Industry, Machine Building, Plant Engineering
Catalog Number - 3211903
Color - Black
Packaging
50 ea
EAN
Part #
154928
Catalog #
3211903
Commercial reference
3211903
12-Digit UPC:
463564825302
Amperage:
6.3 Amp
Applications:
For Railway Industry, Machine Building, Plant Engineering
Catalog Number:
3211903
Color:
Black
Conductor Size:
24-10 AWG
ERP_productname:
PHNX 3211903 PT 4-HESILED 24 (5X20)
Family Brand Name:
Phoenix
Length:
56 mm
Type:
1-Row
Voltage:
24 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_73826567

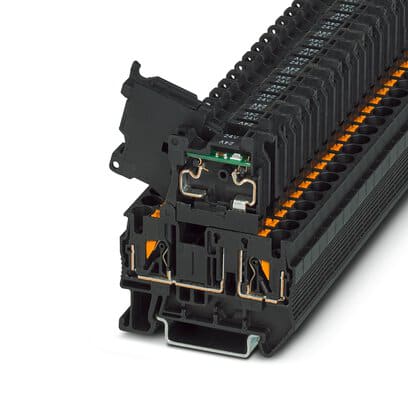

Lever-type fuse terminal block, black, for 5 x 20 mm G fuse inserts, with LED for 24 V AC/DC Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; cULus Recognized; EAC; LR; PRS; NK; DNV GL; CSA; UL Recognized; cUL Recognized
