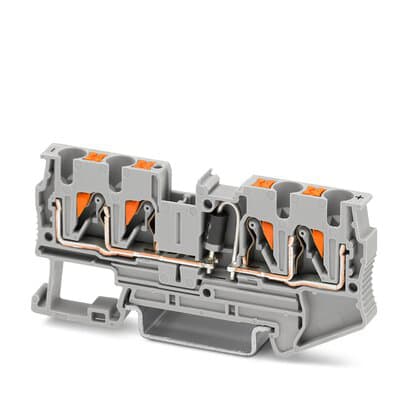

Phoenix Blocks - PHNX 3211921 PT 4-QUATTRO-DIO 1N 5408/R-L

Component terminal block, The max. current is determined by the diode. Installed: diode 1N 5408, reverse voltage: 1000 V, maximum continuous current: 1.5 A, with integrated diode 1N5408, nom. voltage: 800 V, nominal current: 1.5 A, connection method: Push-in connection, Rated cross section: 1 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection - Approvals: BV; cULus Recognized; EAC; LR; NK; DNV GL; CSA; UL Recognized; cUL Recognized
