Phoenix Blocks - PHNX 3212120 PT 10
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564948162
Amperage - 57 Amp
Catalog Number - 3212120
Color - Gray
Country of Origin - China
Packaging
1 ea
EAN
Part #
127183
Catalog #
3212120
Commercial reference
3212120
12-Digit UPC:
463564948162
Amperage:
57 Amp
Catalog Number:
3212120
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3212120 PT 10
Family Brand Name:
Phoenix
Heights:
49.5 mm
Length:
67.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Type:
Feed-Through
Voltage:
1000 Volt
Widths:
10.2 mm
SoneparProductId:
SKU_US_71742755

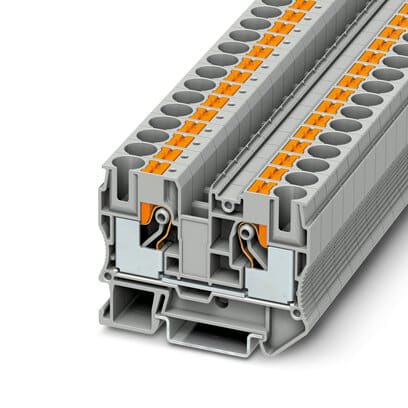

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Push-in connection, Rated cross section: 10 mm., cross section: 0.5 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; PRS; NK; ATEX; IECEE CB Scheme; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
