Phoenix Blocks - PHNX 3212131 PT 10-PE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463564947936
Amperage - 57 Amp
Catalog Number - 3212131
Color - Green/Yellow
Country of Origin - China
Packaging
50 ea
EAN
Part #
137784
Catalog #
3212131
Commercial reference
3212131
12-Digit UPC:
463564947936
Amperage:
57 Amp
Catalog Number:
3212131
Color:
Green/Yellow
Country of Origin:
China
ERP_productname:
PHNX 3212131 PT 10-PE
Family Brand Name:
Phoenix
Heights:
49.5 mm
Length:
67.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
2 Pole
Voltage:
8 kV Surge
Widths:
10.2 mm
SoneparProductId:
SKU_US_73346363

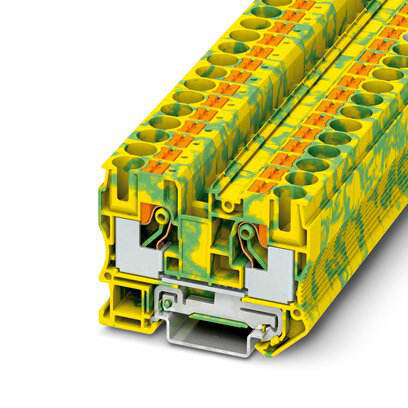

Ground modular terminal block, number of connections: 2, connection method: Push-in connection, Rated cross section: 10 mm., cross section: 0.5 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; The compact design and front connection enable wiring in a confined space ; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; PRS; NK; ATEX; IECEE CB Scheme; DNV GL; RS; ABS; CSA; UL Recognized; cUL Recognized
