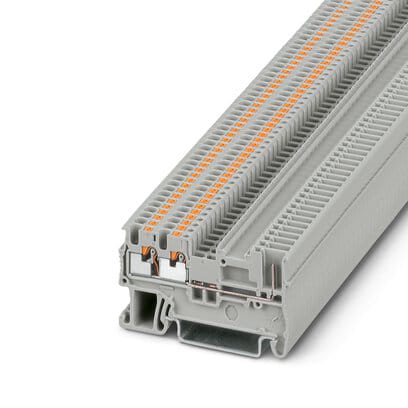

Phoenix Blocks - PHNX 3212358 PT 1 5/S-TWIN/1P

Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors.
Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in / plug connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; Tested for railway applications - Approvals: BV; VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC; LR; NK; DNV GL; IECEE CB Scheme; CSA; UL Recognized; cUL Recognized
