Phoenix Blocks - PHNX 3213140 UKH 70
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565492022
Catalog Number - 3213140
Color - Gray
Country of Origin - China
ERP_productname - PHNX 3213140 UKH 70
Packaging
1 ea
EAN
Part #
202649
Catalog #
3213140
Commercial reference
3213140
12-Digit UPC:
463565492022
Catalog Number:
3213140
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3213140 UKH 70
Family Brand Name:
Phoenix Products
Heights:
78.3 mm
Length:
70.5 mm
Widths:
20.3 mm
SoneparProductId:
SKU_US_71880312

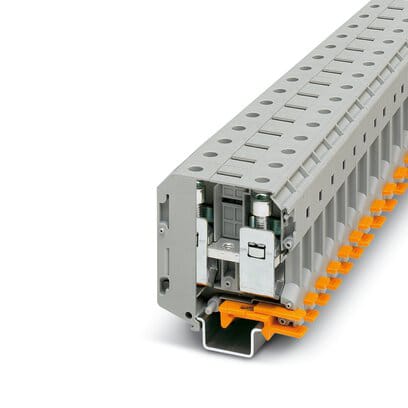

High-current terminal block, nom. voltage: 1000 V, nominal current: 192 A, connection method: Screw connection, Rated cross section: 70 mm., cross section: 16 mm. - 95 mm., mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: gray Features: Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base ; Tested for railway applications; Low contact resistance of the contact surface due to ribbing; Screw locking by means of spring-loaded elements in the clamping part - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; LR; PRS; ATEX; IECEE CB Scheme; DNV GL; CSA; UL Recognized; cUL Recognized
