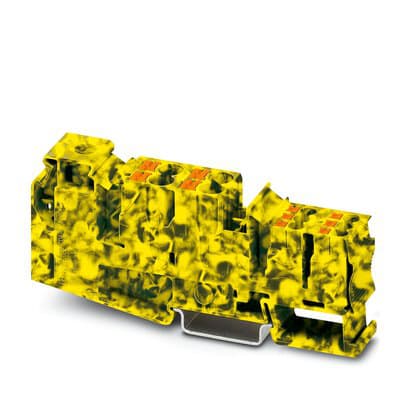

Phoenix Blocks - PHNX 3214082 PTU 35/4X6/6X2 5-FE

Potential collective terminal, In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered., nom. voltage: 1000 V, nominal current: 105 A, connection method: Screw connection, 1st level connection left, cross section: 1.5 mm. - 50 mm., Push-in connection, First level connection, interior, Rated cross section: 6 mm., cross section: 0.5 mm. - 10 mm., mounting type: NS 35/7,5, NS 35/15, color: black/yellow Features: The terminal block base is ideal for use in building installation and machine building applications; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
