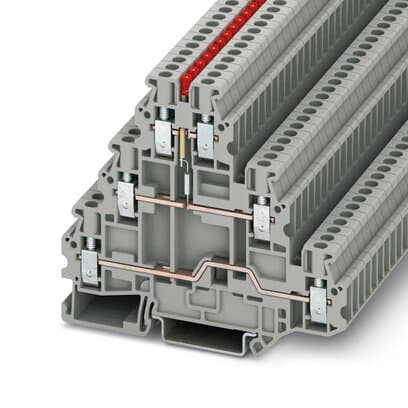

Phoenix Blocks - PHNX 3214288 UT 2 5-3L-LA24RD/O-M

Component terminal block, The current and voltage are determined by the LED display used., nom. voltage: 24 V, nominal current: 19 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly; For a clear overview, each terminal point supports large-surface labeling; A very high wiring density is achieved with the compact three-level terminal blocks - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
