Phoenix Blocks - PHNX 3214365 UT 4-PE/L/TG
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356895719
Catalog Number - 3214365
Color - Gray
Current - 28 Amp
ERP_productname - PHNX 3214365 UT 4-PE/L/TG
Packaging
50 ea
EAN
Part #
118684
Catalog #
3214365
Commercial reference
3214365
12-Digit UPC:
046356895719
Catalog Number:
3214365
Color:
Gray
Current:
28 Amp
ERP_productname:
PHNX 3214365 UT 4-PE/L/TG
Family Brand Name:
Phoenix Contact
Heights:
60.1 mm
Length:
92.7 mm
Mounting Type:
NS 35/7
Widths:
6.2 mm
SoneparProductId:
SKU_US_315886851

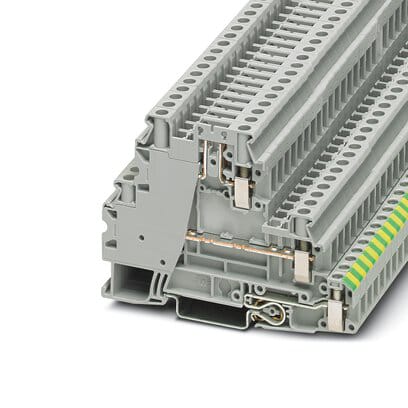

Ground modular terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 28 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 6 mm., mounting: NS 35/7,5, NS 35/15, color: gray Approvals: cULus Recognized; EAC; IECEx; ATEX; CSA; UL Recognized; cUL Recognized
