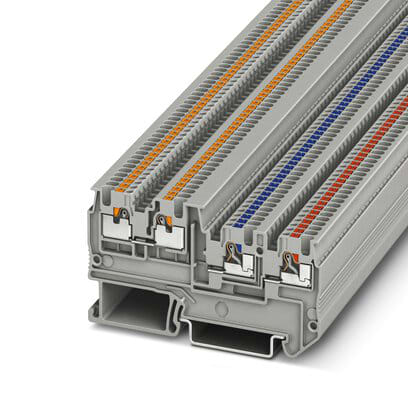

Phoenix Blocks - PHNX 3244410 PTIO 1 5/S/3

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 13.5 A, connection method: Push-in connection, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: Quick and easy connection is now also possible for large conductors with the high-current terminal block; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
