Phoenix Blocks - PHNX 3244559 PTIO-IN 2 5/3 OG
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 046356735902
Amperage - 20 Amp
Catalog Number - 3244559
Color - Orange
Conductor Size - 24-12 AWG
Packaging
50 ea
EAN
Part #
106865
Catalog #
3244559
Commercial reference
3244559
12-Digit UPC:
046356735902
Amperage:
20 Amp
Catalog Number:
3244559
Color:
Orange
Conductor Size:
24-12 AWG
ERP_productname:
PHNX 3244559 PTIO-IN 2 5/3 OG
Family Brand Name:
Phoenix
Length:
74.4 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Type:
2-Connection
Voltage:
250 Volt
Widths:
7 mm
SoneparProductId:
SKU_US_315858402

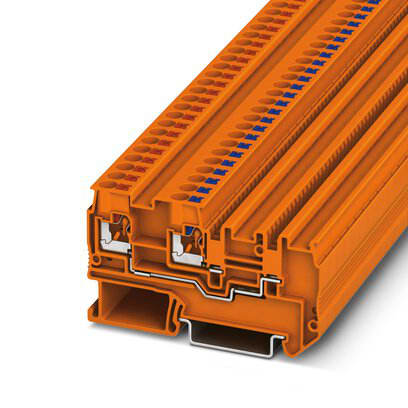

Sensor/actuator terminal block, Power terminal, nom. voltage: 250 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: orange Features: The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors; In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
