Phoenix Blocks - PHNX 3248100 MPT 1 5/S
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463567687198
Catalog Number - 3248100
Color - Gray
ERP_productname - PHNX 3248100 MPT 1 5/S
Family Brand Name - Phoenix Products
Packaging
50 ea
EAN
Part #
165464
Catalog #
3248100
Commercial reference
3248100
12-Digit UPC:
463567687198
Catalog Number:
3248100
Color:
Gray
ERP_productname:
PHNX 3248100 MPT 1 5/S
Family Brand Name:
Phoenix Products
Length:
33.55 mm
Widths:
3.5 mm
SoneparProductId:
SKU_US_73688337

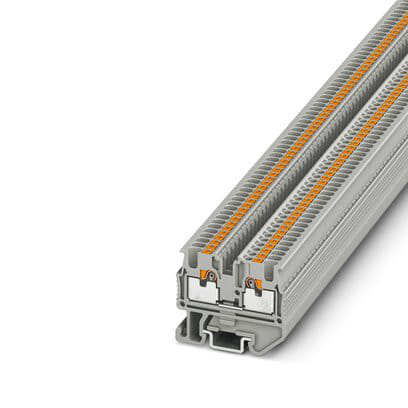

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm., cross section: 0.14 mm. - 1.5 mm., mounting type: NS 15, color: gray Features: Space saving thanks to compact design and mounting option on a 15 mm DIN rail; Clear arrangement thanks to marking of all terminal points; Tested for railway applications - Approvals: BV; VDE Zeichengenehmigung; cULus Recognized; EAC; IECEx; LR; ATEX; IECEE CB Scheme; DNV GL; CSA; UL Recognized; cUL Recognized
