Phoenix Blocks - PHNX 3270088 PTC 2 5-TG

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 046356961179

  • Catalog Number - 3270088

  • Color - Gray

  • Country of Origin - China

  • ERP_productname - PHNX 3270088 PTC 2 5-TG

Packaging

  • 50 ea

EAN

Part #

155468

Catalog #

3270088

Commercial reference

3270088

12-Digit UPC:

046356961179

Catalog Number:

3270088

Color:

Gray

Country of Origin:

China

ERP_productname:

PHNX 3270088 PTC 2 5-TG

Family Brand Name:

Phoenix Contact

Heights:

35.3 mm

Length:

56 mm

Mounting Type:

NS 35/7

Widths:

5.2 mm

SoneparProductId:

SKU_US_315978292

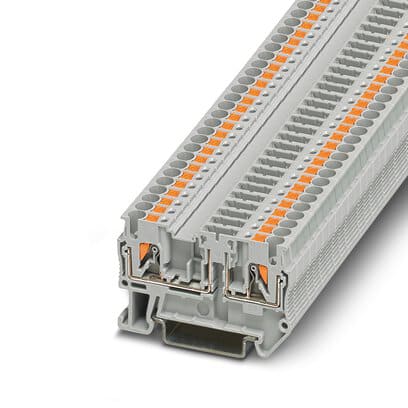

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Push-in connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection; The compact design and front connection enable wiring in a confined space ; The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
