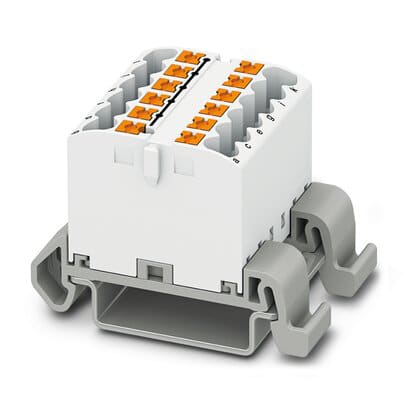

Phoenix Blocks - PHNX 3273166 PTFIX 12X2 5-NS35A WH

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, connection method: Push-in connection, cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: white Features: Space savings of up to 50% on the DIN rail, thanks to transverse mounting; Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting; Time-saving conductor connection, thanks to tool-free Push-in direct connection technology; Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging; Clear wiring, thanks to eleven different color variants - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC; LR; IECEE CB Scheme; DNV GL; CSA; UL Recognized; cUL Recognized
