Phoenix Blocks - PHNX 3273364 PTFIX 6/12X2 5 WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 556263925166
Catalog Number - 3273364
Color - White
ERP_productname - PHNX 3273364 PTFIX 6/12X2 5 WH
Family Brand Name - Phoenix Contact
Packaging
8 ea
EAN
Part #
181574
Catalog #
3273364
Commercial reference
3273364
12-Digit UPC:
556263925166
Catalog Number:
3273364
Color:
White
ERP_productname:
PHNX 3273364 PTFIX 6/12X2 5 WH
Family Brand Name:
Phoenix Contact
Heights:
21.7 mm
Length:
28.6 mm
Widths:
41 mm
SoneparProductId:
SKU_US_316043733

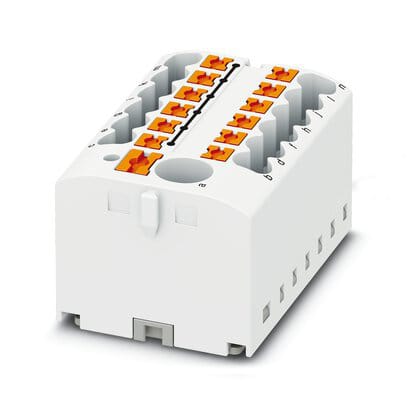

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, Load contact, cross section: 0.14 mm. - 4 mm., Push-in connection, Line contact, Rated cross section: 6 mm., cross section: 0.5 mm. - 10 mm., mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: white
