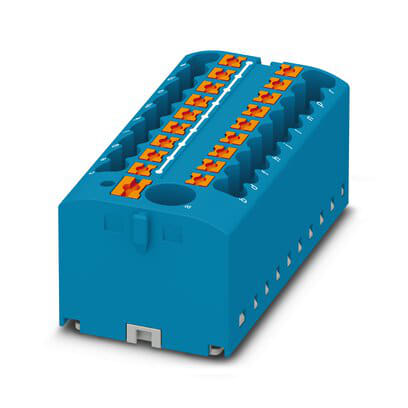

Phoenix Blocks - PHNX 3273376 PTFIX 6/18X2 5 BU

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, connection method: Push-in connection, Load contact, cross section: 0.14 mm. - 4 mm., Push-in connection, Line contact, Rated cross section: 6 mm., cross section: 0.5 mm. - 10 mm., mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue Features: Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting; Clear wiring, thanks to eleven different color variants; Time-saving conductor connection, thanks to tool-free Push-in direct connection technology; Space savings of up to 50% on the DIN rail, thanks to transverse mounting; Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC; LR; IECEE CB Scheme; DNV GL; CSA; UL Recognized; cUL Recognized
