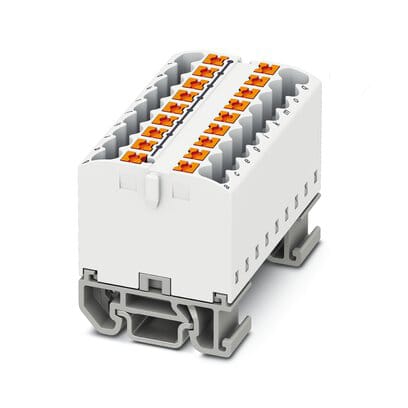

Phoenix Blocks - PHNX 3274156 PTFIX 18X2 5-NS15A WH

Distribution block, the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, connection method: Push-in connection, cross section: 0.14 mm. - 4 mm., mounting type: NS 15, color: white Features: Clear wiring, thanks to eleven different color variants; Time-saving conductor connection, thanks to tool-free Push-in direct connection technology; Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging; Space savings of up to 50% on the DIN rail, thanks to transverse mounting; Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting - Approvals: cULus Recognized; EAC; LR; DNV GL; CSA; UL Recognized; cUL Recognized
