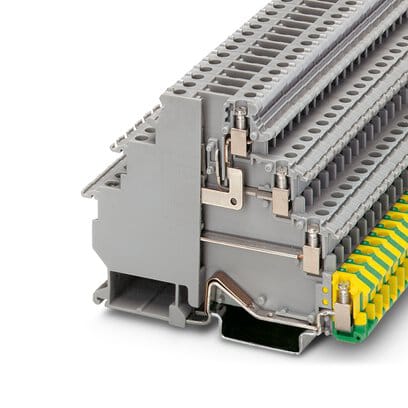

Phoenix Blocks - PHOCON 3011067 VIOK 1 5-D/TG/D/PE

Installation ground terminal block, Current and voltage are determined by the plug used., nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 2nd, 3rd and 4th level, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., connection method: Screw connection, Rated cross section: 1.5 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The upper level contains the feed-through connections for the signal cable which can be labeled; This terminal block is a combination of a DIK ... and DOK ... terminal block where a single terminal block can be used for initiators and actuators; The PE connection is located in the lower level; The two middle terminal points supply potential to the initiator - Approvals: EAC; cULus Recognized; CSA; UL Recognized; cUL Recognized
