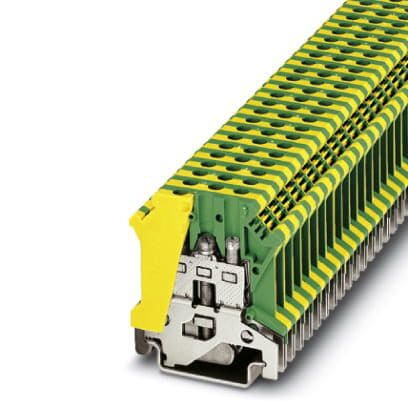

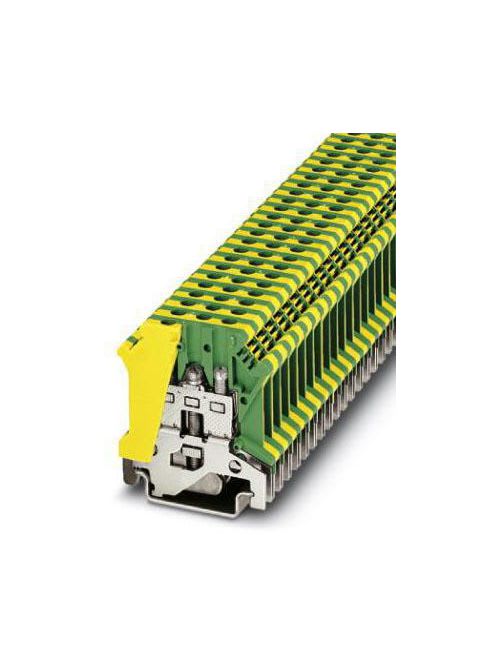

Phoenix Blocks - Phoenix Contact 0441012 8000 Volt 24 to 12 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180021218
Catalog Number - 0441012
ERP_productname - PHNX 0441012 USLKG4 22-12AWG 20A
Family Brand Name - Phoenix Products
Length - 42.5 mm
Packaging
1 ea
EAN
Part #
190691
Catalog #
0441012
Commercial reference
0441012
12-Digit UPC:
179180021218
Catalog Number:
0441012
ERP_productname:
PHNX 0441012 USLKG4 22-12AWG 20A
Family Brand Name:
Phoenix Products
Length:
42.5 mm
Number of Poles:
2 Pole
Voltage:
8 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58574537
Ground modular terminal block, connection method: Screw connection, number of connections: 2, number of positions: 1, cross section: 0.2 mm. - 4 mm., AWG: 24 - 12, width: 6.2 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15, NS 32 Approvals: cULus Recognized; EAC; LR; NK; DNV GL; KR; CSA; UL Recognized; cUL Recognized
