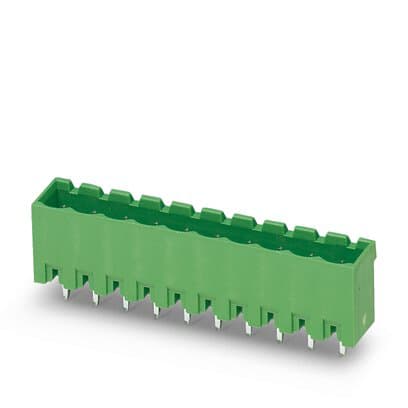

Phoenix Blocks - Phoenix Contact 1755817 320 Volt 12 Amp 5.08 mm Pitch 10-Position Green Polyamide Wave Soldering Base Strip

PCB headers, nominal cross section: 2.5 mm., color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MSTBVA 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard Features: Maximum flexibility when it comes to device design . one header for connectors with different connection technologies; Well-known mounting principle allows worldwide use; Vertical connection enables multi-row arrangement on the PCB; Closed contour for optimum stability of the plug-in connection; Easy PCB replacement thanks to plug-in modules - Approvals: VDE Zeichengenehmigung; EAC; IECEE CB Scheme; CSA; cULus Recognized
