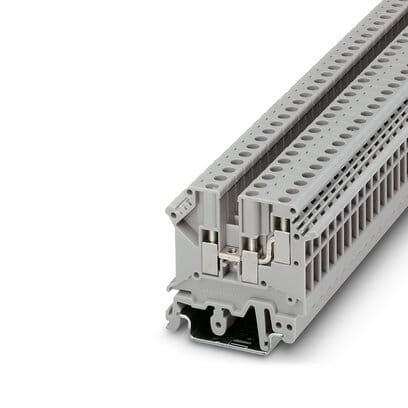

Phoenix Blocks - Phoenix Contact 1923021 500 Volt 32 Amp Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180524238
Catalog Number - 1923021
Color - Gray
Country of Origin - China
ERP_productname - PHNX 1923021 UK 5-TWIN
Packaging
50 ea
EAN
Part #
104678
Catalog #
1923021
Commercial reference
1923021
12-Digit UPC:
179180524238
Catalog Number:
1923021
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 1923021 UK 5-TWIN
Family Brand Name:
Phoenix Products
Heights:
38 mm
Length:
50.5 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_58651105
1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm., AWG: 24 - 12, width: 6.2 mm, color: gray Features: These twin modular terminal blocks are designed for the basic task of potential branching; Universal foot for mounting on NS 35.. or NS 32... DIN rails; Two independent conductor connections can be used on the control cabinet side; Easy connection of different types of conductors with different cross sections; Can be bridged in the terminal center, even with neighboring feed-through terminal blocks aligned - Approvals: cULus Recognized; EAC Ex; EAC; LR; NK; IECEE CB Scheme; DNV GL; ATEX; KEMA-KEUR; CSA; UL Recognized; cUL Recognized
