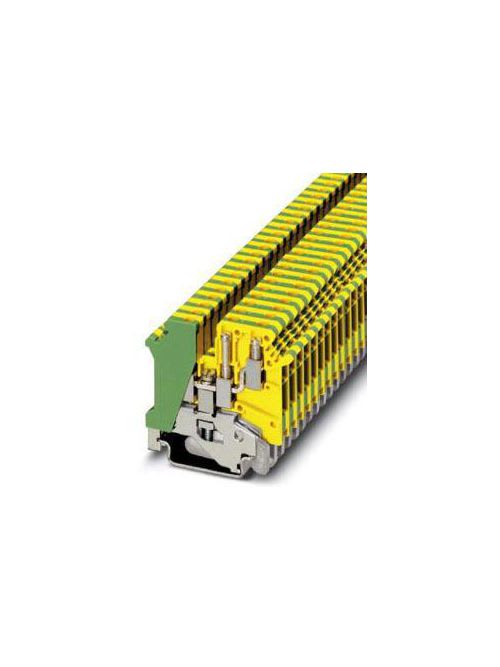

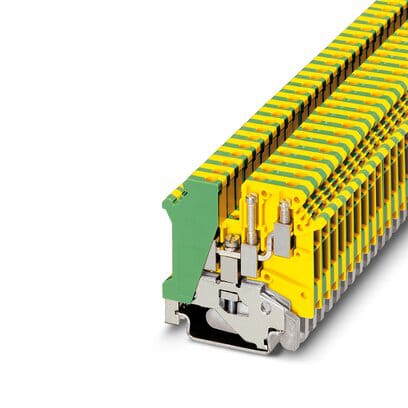

Phoenix Blocks - Phoenix Contact 1923076 6000 Volt 24 to 12 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180524610
Catalog Number - 1923076
Color - Green,Yellow
ERP_productname - PHNX 1923076 UK 5-TWIN-PE
Family Brand Name - Phoenix Products
Packaging
50 ea
EAN
Part #
166512
Catalog #
1923076
Commercial reference
1923076
12-Digit UPC:
179180524610
Catalog Number:
1923076
Color:
Green,Yellow
ERP_productname:
PHNX 1923076 UK 5-TWIN-PE
Family Brand Name:
Phoenix Products
Length:
50.5 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_58683390
1-level ground modular terminal block with single-sided double connection, cross section: 0.2 ... 4 mm., AWG: 24 - 12, width: 6.2 mm, color: green-yellow Features: Same shape and pitch as the feed-through terminal blocks; Universal protective conductor foot for mounting on NS 35... or NS 32... DIN rails (with the exception of NS 35/15?2,3) - Approvals: cULus Recognized; EAC; LR; NK; IECEE CB Scheme; DNV GL; KEMA-KEUR; UL Recognized; cUL Recognized
