Phoenix Blocks - Phoenix Contact 2715979 250 Volt 24 Amp 24 to 12 AWG Gray Polyamide Screw Connection Sensor/Actuator Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180617220
Amperage - 24 Amp
Catalog Number - 2715979
Color - Gray
Conductor Size - 24-12 AWG
Packaging
1 ea
EAN
Part #
193113
Catalog #
2715979
Commercial reference
2715979
12-Digit UPC:
179180617220
Amperage:
24 Amp
Catalog Number:
2715979
Color:
Gray
Conductor Size:
24-12 AWG
ERP_productname:
PHNX 2715979 DIKD1.5 TERM BLOCK
Family Brand Name:
Phoenix Contact
Length:
72.5 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Number of Poles:
6 Pole
Torque Rating:
0.5 - 0.6 N-m
Type:
Triple-Level, 6-Connection
Voltage:
250 Volt Nominal, 4 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58454874

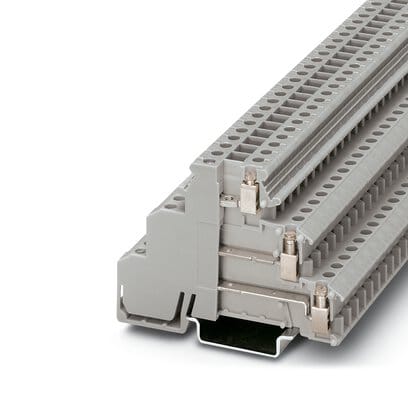

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The first initiator can also be connected to this three-conductor feed-through terminal block; The positive and negative potential can be supplied to the insertion bridges via this power terminal block - Approvals: EAC; cULus Recognized; CSA; UL Recognized; cUL Recognized
