Phoenix Blocks - Phoenix Contact 2771146 500 Volt 32 Amp 24 to 12 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918068226
Amperage - 32 Amp
Catalog Number - 2771146
Color - Gray
Country of Origin - China
Packaging
1 ea
EAN
Part #
193486
Catalog #
2771146
Commercial reference
2771146
12-Digit UPC:
017918068226
Amperage:
32 Amp
Catalog Number:
2771146
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 2771146 UKKB5
Family Brand Name:
Phoenix Products
Length:
67 mm
Voltage:
500 Volt Nominal, 6 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58454933

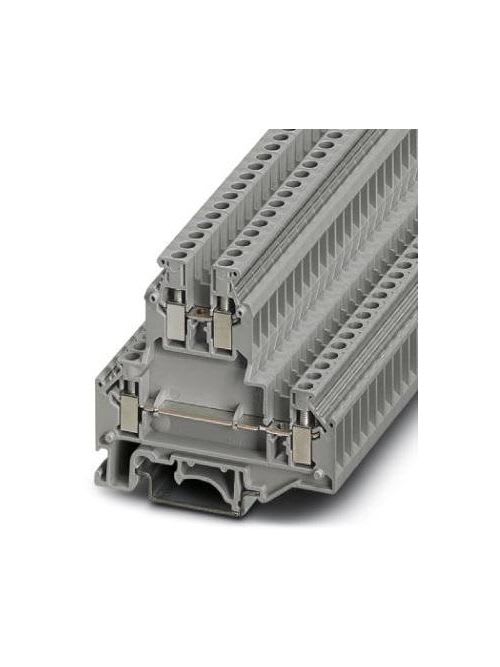

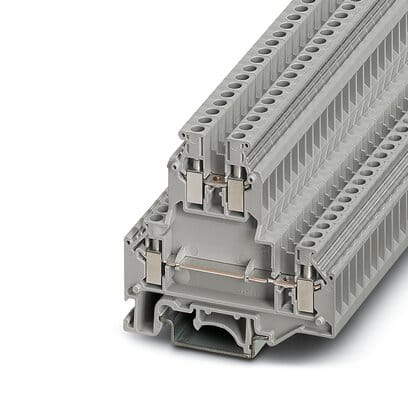

Double-level terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, 1st and 2nd level, Rated cross section: 4 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Large-surface labeling option - Approvals: EAC; LR; NK; IECEE CB Scheme; DNV GL; KEMA-KEUR; RS; CSA; UL Recognized; cUL Recognized
