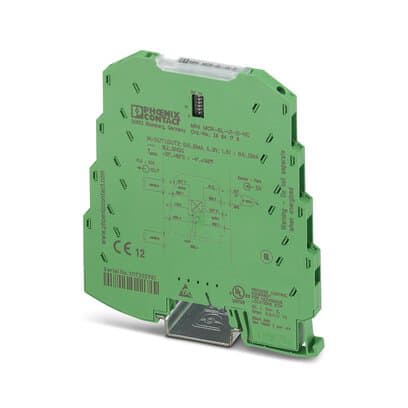

Phoenix Blocks - Phoenix Contact 2864176 30 Volt 50 mA 4-Way Green PBT Housing Screw Connection Electrical Isolation Signal Duplicator
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 017918974804
Catalog Number - 2864176
Country of Origin - Germany
Depths - 101.2 mm
ERP_productname - PHNX 2864176
Packaging
1 ea
EAN
Part #
203069
Catalog #
2864176
Commercial reference
2864176
12-Digit UPC:
017918974804
Catalog Number:
2864176
Country of Origin:
Germany
Depths:
101.2 mm
ERP_productname:
PHNX 2864176
Family Brand Name:
Phoenix
Heights:
93.1 mm
Input Voltage:
30 V
Material:
PBT
Mounting Type:
DIN Rail
Output Current:
22 mA
Output Voltage:
9 V
Widths:
6.2 mm
SoneparProductId:
SKU_US_58454540
4-way signal duplicator for electrical isolation and duplication of analog signals with screw connection, standard configuration Features: Power supply possible via the foot element (TBUS); Highly-compact isolating amplifier for electrical isolation, conversion, amplification, filtering, and duplication of standard analog signals; Up to 8 signal combinations can be configured using DIP switches; 4-way isolation; Duplication of a standard analog signal on two current outputs - Approvals: cULus Listed; cULus Recognized; ATEX; EAC Ex; GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
