Phoenix Blocks - Phoenix Contact 2864419 18 Volt 40 mA 1-Channel Green PBT Housing Screw Connection Loop-Powered Isolator
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189748482
Catalog Number - 2864419
Country of Origin - Germany
Depths - 101.2 mm
ERP_productname - PHNX 2864419 MINI MCR-SL-1CP-I-I
Packaging
1 ea
EAN
Part #
142139
Catalog #
2864419
Commercial reference
2864419
12-Digit UPC:
179189748482
Catalog Number:
2864419
Country of Origin:
Germany
Depths:
101.2 mm
ERP_productname:
PHNX 2864419 MINI MCR-SL-1CP-I-I
Family Brand Name:
Phoenix Products
Heights:
93.1 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_58570475

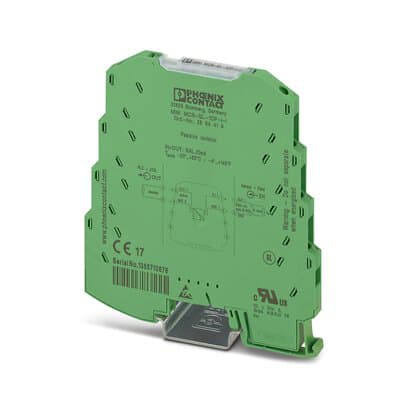

MCR loop-powered isolator, 1-channel, for the electrical isolation of current signals without auxiliary power, with screw connection Features: Voltage drop at isolating amplifier of just 1.7 V; Does not require additional auxiliary voltage; Supplied by an input loop; Two channels on a design width of just 6.2 mm; Highly-compact 2-wire passive isolators for electrical isolation and filtering of standard analog signals - Approvals: ATEX; cULus Recognized; EAC Ex; DNV GL; UL Recognized; cUL Recognized
