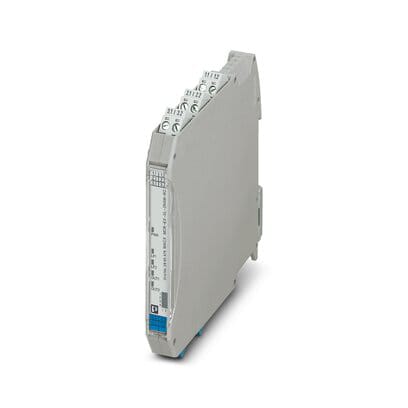

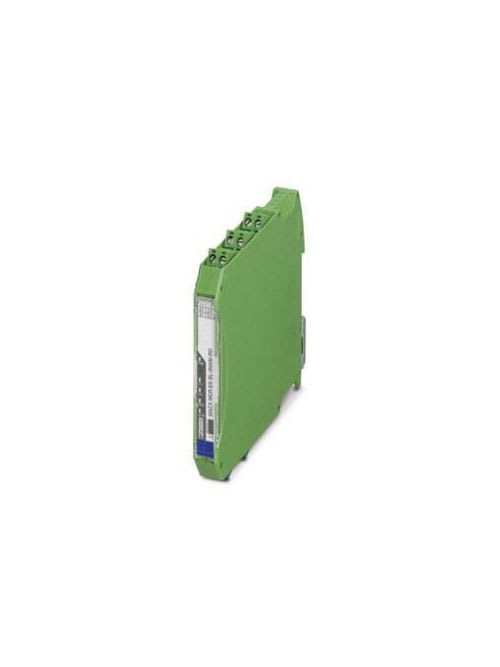

Phoenix Blocks - Phoenix Contact 2865476 24 VDC 12.5 x 114.5 x 99 mm 3-Way Green Isolating Amplifier

Ex i NAMUR isolating amplifier, 2-channel. For operating proximity sensors and switches in Ex areas. The signals are transmitted via relay outputs (N/O contact) to the safe area. Line fault detection (LFD), 3-way isolation, SIL 2. Features: Power supply and error indication possible via DIN rail connector; Up to SIL 2 according to IEC 61508; Installation in zone 2, protection type \"n\" (EN 60079-15) permitted; Line fault detection (LFD), can be activated/deactivated, error indicated by red flashing LED with de-excitation of output relay; LED indicators for supply voltage, switching state, and malfunction according to NAMUR NE 44; 3-way electrical isolation; Direction of operation can be selected (operating or closed circuit current behavior); Relay signal output (N/O contact); Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit, [Ex ia] IIC; 2-channel - Approvals: cULus Listed; EAC Ex; ATEX; IECEx; Functional Safety; INMETRO; DNV GL; KC-s; UL Listed; cUL Listed
