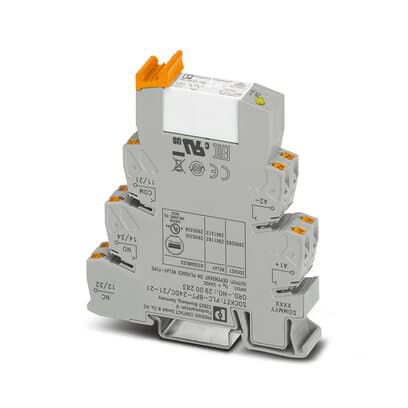

Phoenix Blocks - Phoenix Contact 2900330 24 VDC 18 mA 26 to 14 AWG DPDT Din Rail Mount Push-In Connection PLC Interface Relay Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463565098934
Catalog Number - 2900330
Country of Origin - Germany
Depths - 94 mm
ERP_productname - PHNX 2900330 PLC-RPT- 24DC/21-21
Packaging
10 ea
EAN
Part #
224822
Catalog #
2900330
Commercial reference
2900330
12-Digit UPC:
463565098934
Catalog Number:
2900330
Country of Origin:
Germany
Depths:
94 mm
ERP_productname:
PHNX 2900330 PLC-RPT- 24DC/21-21
Family Brand Name:
Phoenix Products
Heights:
80 mm
Widths:
14 mm
SoneparProductId:
SKU_US_58580694
PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal block with Push-in connection and plug-in miniature relay with power contact, for mounting on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC Features: Slim design; Efficient connection to system cabling using V8 adapter; RT III sealed relay; Safe isolation according to DIN EN 50178 between coil and contact; Integrated input circuit and interference suppression circuit; Functional plug-in bridges - Approvals: cULus Listed; RC FRT; cULus Recognized; EAC; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
