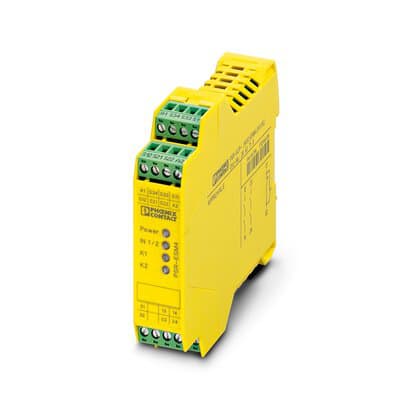

Phoenix Blocks - Phoenix Contact 2963718 24 VAC/VDC 140 mA 24 to 12 AWG Din Rail Mount Screw Connection Electromechanical Safety Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179185993794
Catalog Number - 2963718
Country of Origin - Germany
Depths - 114.5 mm
ERP_productname - PHNX 2963718 PSR-SCP- 24UC/ESM4/2X1/1X2
Packaging
1 ea
EAN
Part #
197129
Catalog #
2963718
Commercial reference
2963718
12-Digit UPC:
179185993794
Catalog Number:
2963718
Country of Origin:
Germany
Depths:
114.5 mm
ERP_productname:
PHNX 2963718 PSR-SCP- 24UC/ESM4/2X1/1X2
Family Brand Name:
Phoenix Products
Heights:
99 mm
Widths:
22.5 mm
SoneparProductId:
SKU_US_58460776
Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 2 enabling current paths, nominal input voltage: 24 V DC, plug-in screw terminal block Features: Up to Cat.4/PL e according to EN ISO 13849-1, SILCL 3 according to EN 62061, SIL 3 according to IEC 61508; Single and two-channel control; 2 enabling current paths, 1 signaling current path - Approvals: EAC; Functional Safety; UL Listed; cUL Listed
