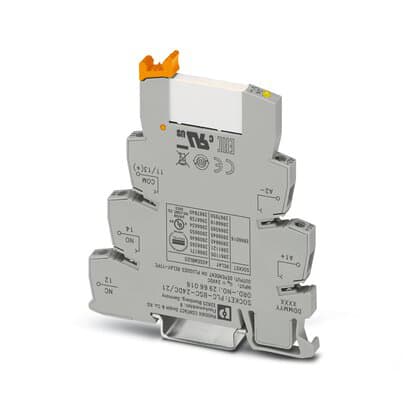

Phoenix Blocks - Phoenix Contact 2966171 24 VDC 9 mA 0.22 W 26 to 14 AWG Din Rail Screw Connection PLC Basic Terminal Block Relay Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181307328
Amperage - 9 mA Input, 10 Amp Inrush
Applications - For Industrial use
Catalog Number - 2966171
Conductor Size - 26-14 AWG
Packaging
1 ea
EAN
Part #
194107
Catalog #
2966171
Commercial reference
2966171
12-Digit UPC:
179181307328
Amperage:
9 mA Input, 10 Amp Inrush
Applications:
For Industrial use
Catalog Number:
2966171
Conductor Size:
26-14 AWG
Country of Origin:
Germany
Depths:
94 mm
ERP_productname:
PHNX 2966171 PLC-RSC-24DC/21 TRM BL
Family Brand Name:
Phoenix Contact
Heights:
80 mm
Mounting Type:
NS 35/7.5 DIN Rail
Type:
Non-Latching
Voltage:
250 VAC/VDC
Widths:
6.2 mm
SoneparProductId:
SKU_US_58461176
PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 1 changeover contact, input voltage 24 V DC Features: Slim design; Efficient connection to system cabling using V8 adapter; RT III sealed relay; Safe isolation according to DIN EN 50178 between coil and contact; Functional plug-in bridges; Integrated input circuit and interference suppression circuit - Approvals: cULus Listed; RC FRT; cULus Recognized; EAC; PRS; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
