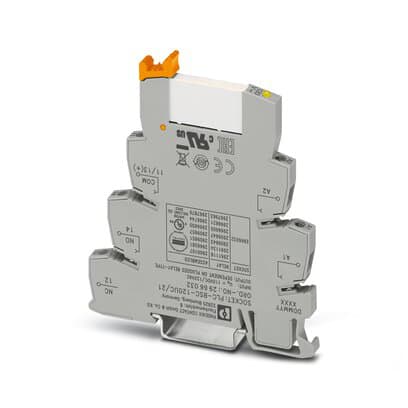

Phoenix Blocks - Phoenix Contact 2966197 120 VAC 3.5 mA 0.42 W 26 to 14 AWG Din Rail Screw Connection PLC Basic Terminal Block Relay Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181307182
Amperage - 3.5 mA Input, 10 Amp Inrush
Catalog Number - 2966197
Country of Origin - Germany
Depths - 94 mm
Packaging
1 ea
EAN
Part #
194118
Catalog #
2966197
Commercial reference
2966197
12-Digit UPC:
179181307182
Amperage:
3.5 mA Input, 10 Amp Inrush
Catalog Number:
2966197
Country of Origin:
Germany
Depths:
94 mm
ERP_productname:
PHNX 2966197 PLC-RSC-120UC/21 RELAY
Family Brand Name:
Phoenix
Heights:
80 mm
Mounting Type:
35/7.5 mm DIN Rail
Voltage:
250 VAC/VDC
Widths:
6.2 mm
SoneparProductId:
SKU_US_58460822
PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 1 changeover contact, input voltage 120 V AC/110 V DC Features: Slim design; Efficient connection to system cabling using V8 adapter; Safe isolation according to DIN EN 50178 between coil and contact; RT III sealed relay; Integrated input circuit and interference suppression circuit; Functional plug-in bridges - Approvals: cULus Listed; RC FRT; cULus Recognized; EAC; PRS; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
