Phoenix Blocks - Phoenix Contact 2967060 24 VDC 18 mA 26 to 14 AWG DPDT Din Rail Mount Screw Connection PLC Interface Relay Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179181563748
Amperage - 18 mA Input, 15 Amp Inrush
Catalog Number - 2967060
Country of Origin - Germany
Depths - 94 mm
Packaging
1 ea
EAN
Part #
194290
Catalog #
2967060
Commercial reference
2967060
12-Digit UPC:
179181563748
Amperage:
18 mA Input, 15 Amp Inrush
Catalog Number:
2967060
Country of Origin:
Germany
Depths:
94 mm
ERP_productname:
PHNX 2967060 PLC-RSC-24DC/21-21
Family Brand Name:
Phoenix
Heights:
80 mm
Mounting Type:
35 mm DIN Rail
Voltage:
250 VAC/VDC
Widths:
14 mm
SoneparProductId:
SKU_US_58458773

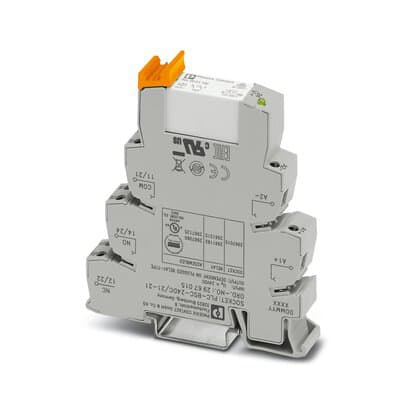

PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC Features: Slim design; Efficient connection to system cabling using V8 adapter; RT III sealed relay; Safe isolation according to DIN EN 50178 between coil and contact; Integrated input circuit and interference suppression circuit; Functional plug-in bridges - Approvals: cULus Listed; RC FRT; cULus Recognized; EAC; PRS; DNV GL; UL Listed; cUL Listed; UL Recognized; cUL Recognized
