Phoenix Blocks - Phoenix Contact 3001501 800 Volt 24 Amp 24 to 12 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180899558
Amperage - 24 Amp
Catalog Number - 3001501
Color - Gray
Country of Origin - China
Packaging
1 ea
EAN
Part #
194321
Catalog #
3001501
Commercial reference
3001501
12-Digit UPC:
179180899558
Amperage:
24 Amp
Catalog Number:
3001501
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3001501 UK3N TERM BLK NAT
Family Brand Name:
Phoenix Products
Length:
42.5 mm
Number of Poles:
2 Pole
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
5.2 mm
SoneparProductId:
SKU_US_58459855

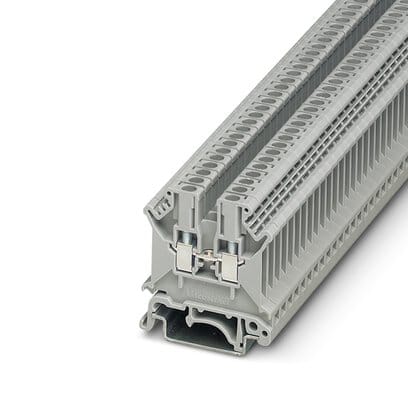

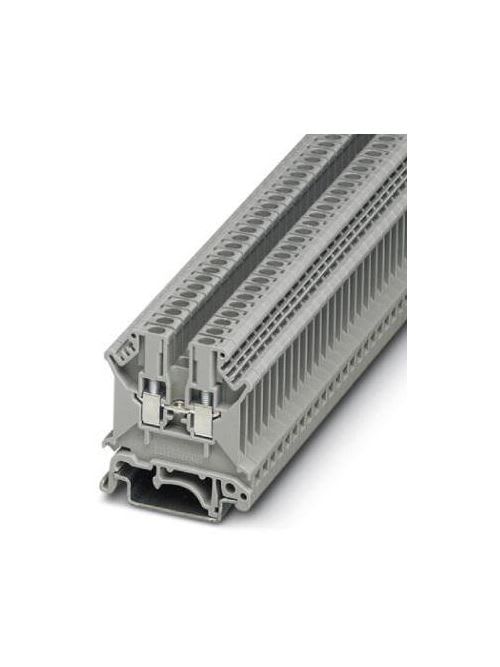

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.2 mm. - 4 mm., mounting type: NS 32, NS 35/15, NS 35/7,5, color: gray Features: Universal foot which can be used on NS 35... and NS 32... DIN rails; The UK universal screw terminal block series has the typical features which are decisive for practical applications; Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space - Approvals: cULus Recognized; EAC Ex; EAC; LR; IECEx; GL; NK; IECEE CB Scheme; DNV GL-EX; DNV GL; ATEX; KEMA-KEUR; RS; KR; CSA; UL Recognized; cUL Recognized
