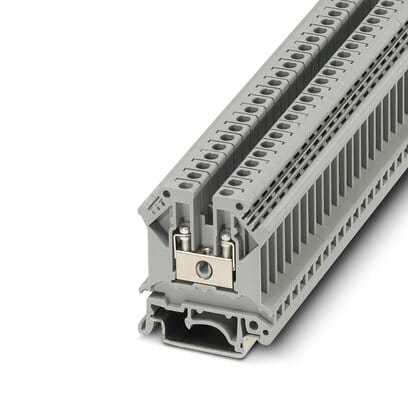

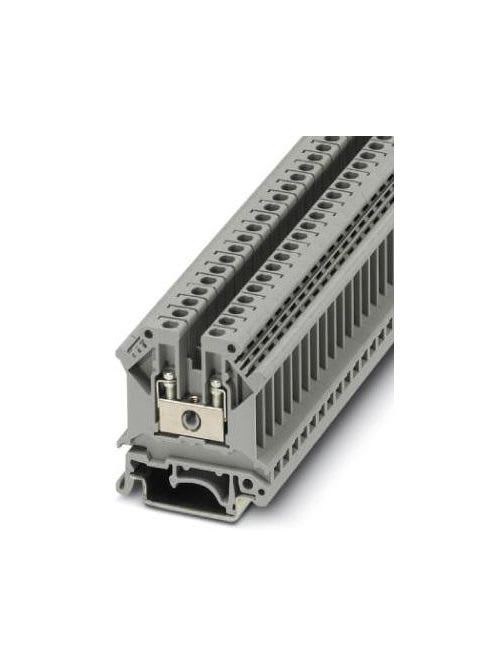

Phoenix Blocks - Phoenix Contact 3004016 800 Volt 32 Amp 24 to 10 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180905624
Amperage - 32 Amp
Catalog Number - 3004016
Color - Gray
ERP_productname - PHNX 3004016 UK5 18-10AWG 30A
Packaging
50 ea
EAN
Part #
194340
Catalog #
3004016
Commercial reference
3004016
12-Digit UPC:
179180905624
Amperage:
32 Amp
Catalog Number:
3004016
Color:
Gray
ERP_productname:
PHNX 3004016 UK5 18-10AWG 30A
Family Brand Name:
Phoenix Products
Length:
42.5 mm
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
6.2 mm
SoneparProductId:
SKU_US_58459659
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw connection, cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Approvals: cULus Recognized; EAC; NK; DNV GL-EX; DNV GL; KR; CSA; UL Recognized; cUL Recognized
