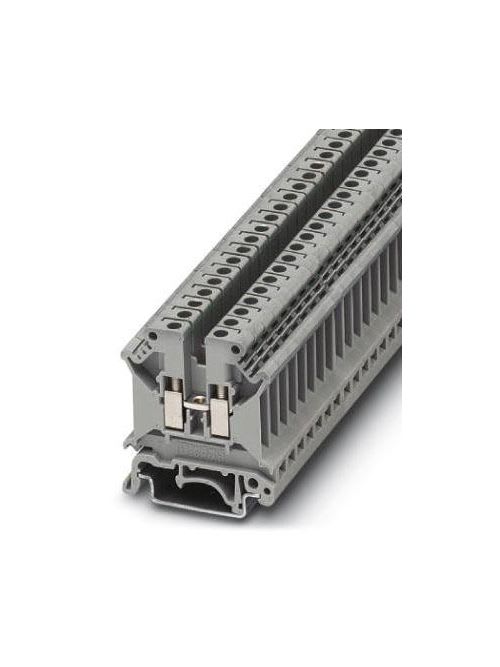

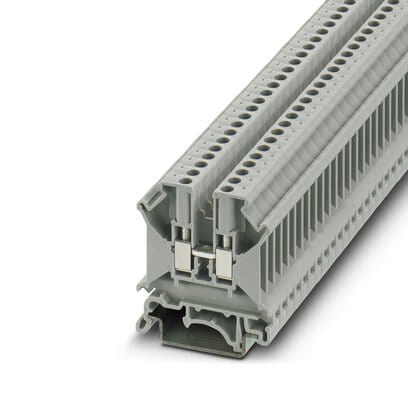

Phoenix Blocks - Phoenix Contact 3004362 800 Volt 32 Amp 24 to 10 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783250452354
Amperage - 32 Amp
Catalog Number - 3004362
Color - Gray
Country of Origin - China
Packaging
1 ea
EAN
Part #
194356
Catalog #
3004362
Commercial reference
3004362
12-Digit UPC:
783250452354
Amperage:
32 Amp
Catalog Number:
3004362
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3004362 UK5N 50PK
Family Brand Name:
Phoenix
Length:
42.5 mm
Mounting Type:
DIN Rail
Type:
1-Level, Feed-Through
Voltage:
800 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_58459669
Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.2 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: Universal foot which can be used on NS 35... and NS 32... DIN rails; The UK universal screw terminal block series has the typical features which are decisive for practical applications; Potential distribution via fixed bridges in the terminal center or insertion bridges in the clamping space - Approvals: cULus Recognized; EAC Ex; EAC; LR; IECEx; GL; NK; IECEE CB Scheme; DNV GL-EX; DNV GL; ATEX; RS; KEMA-KEUR; KR; CSA; UL Recognized; cUL Recognized
