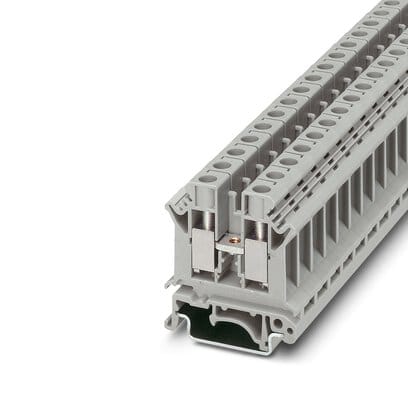

Phoenix Blocks - Phoenix Contact 3005073 800 Volt 57 Amp 20 to 6 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179180910192
Amperage - 57 Amp
Catalog Number - 3005073
Color - Gray
Country of Origin - China
Packaging
50 ea
EAN
Part #
194590
Catalog #
3005073
Commercial reference
3005073
12-Digit UPC:
179180910192
Amperage:
57 Amp
Catalog Number:
3005073
Color:
Gray
Country of Origin:
China
ERP_productname:
PHNX 3005073 UK10N TERMINAL BLOCK
Family Brand Name:
Phoenix
Length:
42.5 mm
Number of Poles:
2 Pole
Type:
Feed-Through
Voltage:
800 Volt Nominal, 8 kV Surge
Widths:
10.2 mm
SoneparProductId:
SKU_US_58456934
Feed-through terminal block, nom. voltage: 800 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm., cross section: 0.5 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray Features: All universal terminal blocks in the UK... series can also be used in the Ex e area according to IEC/EN 60079 as standard; The corresponding EC-type examination numbers for Ex approval can be found in the technical connection data - Approvals: cULus Recognized; EAC Ex; EAC; LR; IECEx; GL; NK; IECEE CB Scheme; DNV GL-EX; DNV GL; ATEX; KEMA-KEUR; RS; KR; CSA; UL Recognized; cUL Recognized
