Phoenix Blocks - Phoenix Contact 3007123 6000 Volt 24 to 12 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 179180915388

  • Catalog Number - 3007123

  • Color - Green,Yellow

  • Country of Origin - Turkey

  • ERP_productname - PHNX 3007123 UKKB 5-PE

Packaging

  • 1 ea

EAN

Part #

145064

Catalog #

3007123

Commercial reference

3007123

12-Digit UPC:

179180915388

Catalog Number:

3007123

Color:

Green,Yellow

Country of Origin:

Turkey

ERP_productname:

PHNX 3007123 UKKB 5-PE

Family Brand Name:

Phoenix Products

Length:

67 mm

Widths:

6.2 mm

SoneparProductId:

SKU_US_58460635

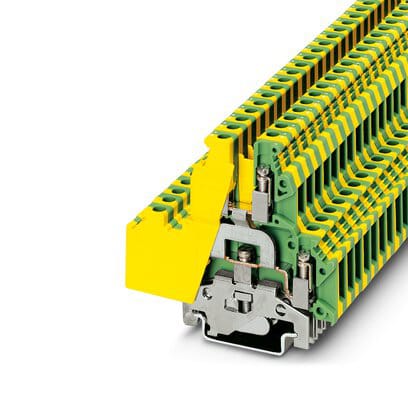

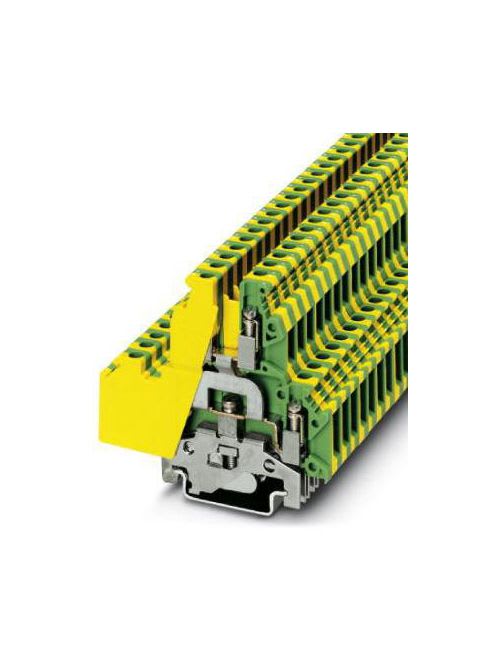

Ground modular terminal block, connection method: Screw connection, 1st and 2nd level, cross section: 0.2 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow Features: Same shape and pitch as the feed-through terminal blocks; Universal protective conductor foot for mounting on NS 35... or NS 32... DIN rails (with the exception of NS 35/15?2,3); The offset levels offer unobstructed access to the lower connection level even when fully wired - Approvals: EAC; LR; NK; IECEE CB Scheme; DNV GL; KEMA-KEUR; CSA
