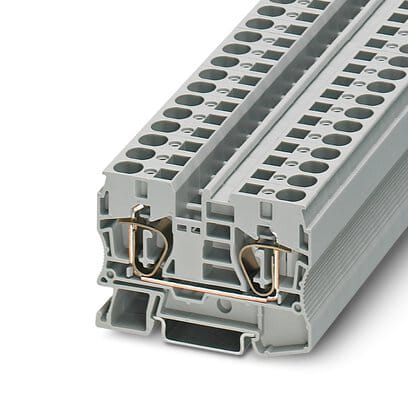

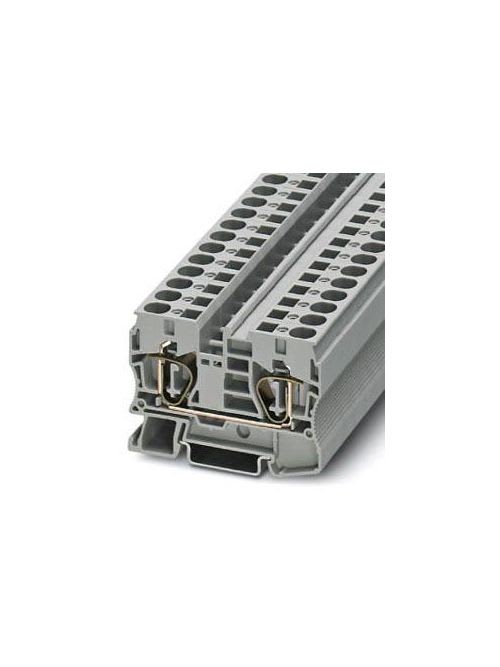

Phoenix Blocks - Phoenix Contact 3036110 1000 Volt 57 Amp 24 to 6 AWG Gray Polyamide Spring Cage Connection Feed-Through Terminal Block

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Spring-cage connection, Rated cross section: 10 mm., cross section: 0.2 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The flexible options for reducing bridging in the CLIPLINE complete system can be found in \"Accessories for the CLIPLINE complete modular terminal block system\; The double bridge shaft not only enables individual chain bridging, but also reducing bridging to spring-cage terminal blocks with smaller cross sections; Tested for railway applications - Approvals: BV; VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; LR; NK; IECEE CB Scheme; DNV GL; ATEX; RS; KR; CSA; UL Recognized; cUL Recognized
