Phoenix Blocks - Phoenix Contact 3036343 400 Volt 20 Amp 28 to 12 AWG Gray Polyamide Spring Cage Connection Knife Disconnect Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179188903912
Catalog Number - 3036343
Color - Gray
Country of Origin - Germany
ERP_productname - PHNX 3036343 ST 2.5 MT
Packaging
1 ea
EAN
Part #
214905
Catalog #
3036343
Commercial reference
3036343
12-Digit UPC:
179188903912
Catalog Number:
3036343
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3036343 ST 2.5 MT
Family Brand Name:
Phoenix Products
Length:
60.5 mm
Mounting Type:
NS 35/7
Widths:
5.2 mm
SoneparProductId:
SKU_US_58461423

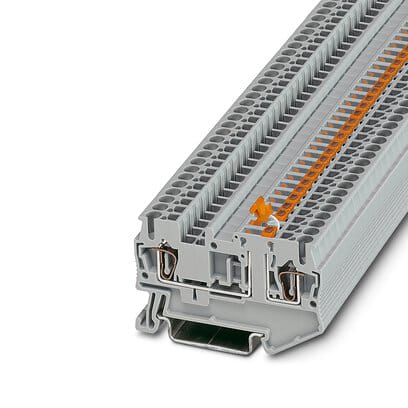

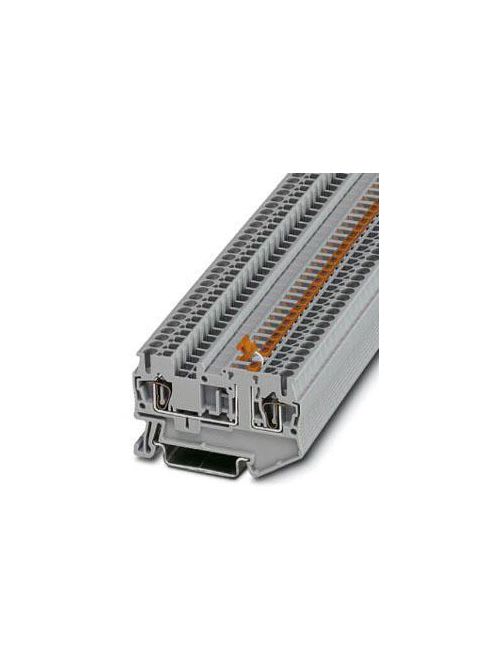

Knife disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Spring-cage connection, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting: NS 35/7,5, NS 35/15, color: gray Features: Three and four-conductor terminal blocks can be used for multi-conductor connections; User-friendly wiring thanks to front connection; Compact knife disconnect terminal block with a current carrying capacity of 20 A; Consistent and can be double bridged for all tasks in time-saving potential supply and distribution; Test connection parallel to the disconnect point for 2.3 mm diameter test plugs; Tested for railway applications - Approvals: cULus Recognized; EAC; CSA; UL Recognized; cUL Recognized
