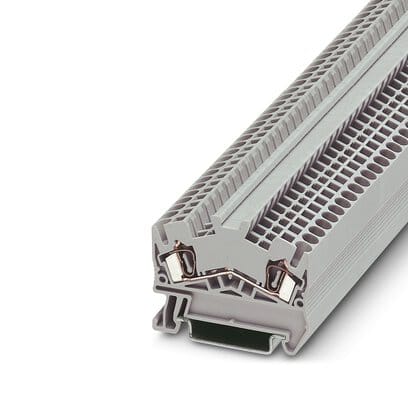

Phoenix Blocks - Phoenix Contact 3036398 800 Volt 24 Amp 28 to 12 AWG Gray Polyamide Spring Cage Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179188769440
Catalog Number - 3036398
Color - Gray
Country of Origin - Germany
ERP_productname - PHNX 3036398 STS 2 5
Packaging
1 ea
EAN
Part #
183616
Catalog #
3036398
Commercial reference
3036398
12-Digit UPC:
179188769440
Catalog Number:
3036398
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3036398 STS 2 5
Family Brand Name:
Phoenix Contact
Length:
50.8 mm
Widths:
5.2 mm
SoneparProductId:
SKU_US_384405927
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, 1 level, Rated cross section: 2.5 mm., cross section: 0.08 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: User-friendly wiring thanks to front connection; Angled conductor entry for use in flat terminal boxes; Large space saving when used in concealed wiring systems; Feed-through terminal blocks with 2, 3 or 4 connections have the same shape - Approvals: BV; VDE Zeichengenehmigung; EAC; cULus Recognized; EAC Ex; LR; IECEx; NK; IECEE CB Scheme; ATEX; DNV GL; RS; KR; ABS; CSA; UL Recognized; cUL Recognized
