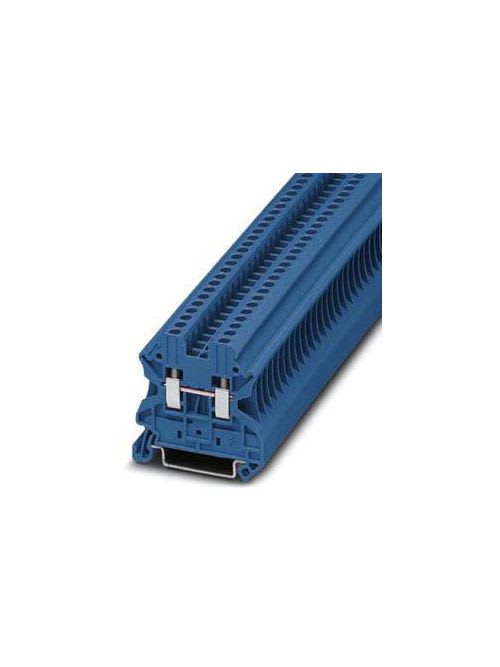

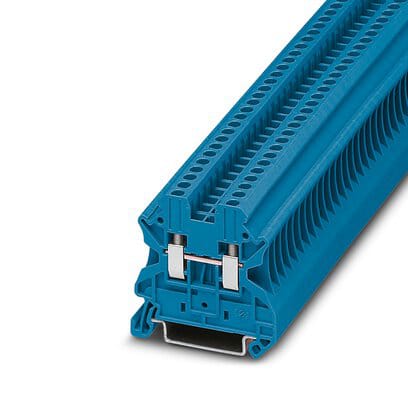

Phoenix Blocks - Phoenix Contact 3044089 1000 Volt 24 Amp 26 to 12 AWG Blue Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189603538
Amperage - 24 Amp
Catalog Number - 3044089
Color - Blue
Conductor Size - 0.14 - 4 mm.
Packaging
1 ea
EAN
Part #
126762
Catalog #
3044089
Commercial reference
3044089
12-Digit UPC:
179189603538
Amperage:
24 Amp
Catalog Number:
3044089
Color:
Blue
Conductor Size:
0.14 - 4 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3044089 UT 2.5 BU
Family Brand Name:
Phoenix
Heights:
46.9 mm
Length:
47.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.5 - 0.6 N-m
Type:
Feed-Through
Voltage:
1000 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_58458897
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: blue Features: The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section; As well as saving space, the compact design enables user-friendly wiring in a small amount of space; Optimum screwdriver guidance through closed screw shafts; The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section; Tested for railway applications - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC; EAC Ex; LR; IECEx; PRS; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
