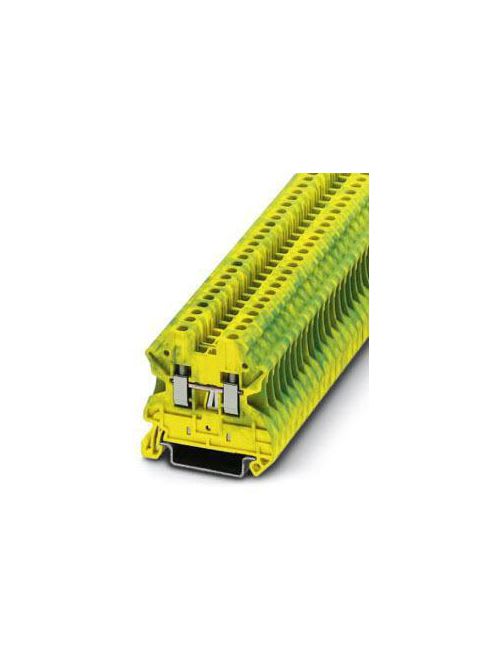

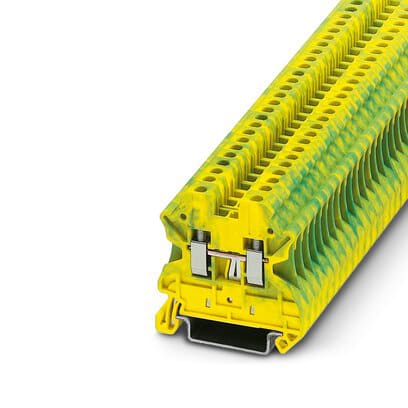

Phoenix Blocks - Phoenix Contact 3044092 8000 Volt 26 to 12 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189603606
Catalog Number - 3044092
Color - Green/Yellow
Conductor Size - 0.14 - 4 mm.
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
126693
Catalog #
3044092
Commercial reference
3044092
12-Digit UPC:
179189603606
Catalog Number:
3044092
Color:
Green/Yellow
Conductor Size:
0.14 - 4 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3044092 UT 2.5 PE
Family Brand Name:
Phoenix
Heights:
46.9 mm
Length:
47.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.5 - 0.6 N-m
Widths:
5.2 mm
SoneparProductId:
SKU_US_58458896
Ground modular terminal block, number of connections: 2, connection method: Screw connection, cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: Tested for railway applications - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
