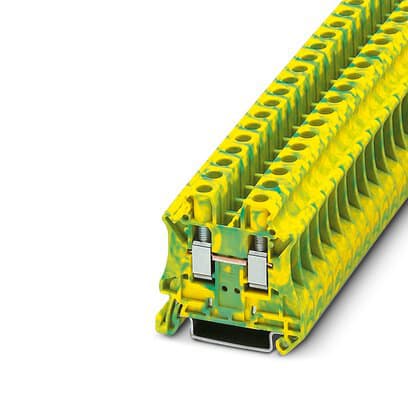

Phoenix Blocks - Phoenix Contact 3044157 8000 Volt 24 to 8 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189604146
Catalog Number - 3044157
Color - Green/Yellow
Conductor Size - 0.5 - 16 mm., 0.2 - 10 mm.
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
132503
Catalog #
3044157
Commercial reference
3044157
12-Digit UPC:
179189604146
Catalog Number:
3044157
Color:
Green/Yellow
Conductor Size:
0.5 - 16 mm., 0.2 - 10 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3044157 UT 6 PE
Family Brand Name:
Phoenix
Heights:
46.9 mm
Length:
47.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
1.5 - 1.8 N-m
Widths:
8.2 mm
SoneparProductId:
SKU_US_58460604
Ground modular terminal block, number of connections: 2, connection method: Screw connection, cross section: 0.5 mm. - 16 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section; As well as saving space, the compact design enables user-friendly wiring in a small amount of space; Optimum screwdriver guidance through closed screw shafts; Tested for railway applications; The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section - Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; CSA; UL Recognized; cUL Recognized
