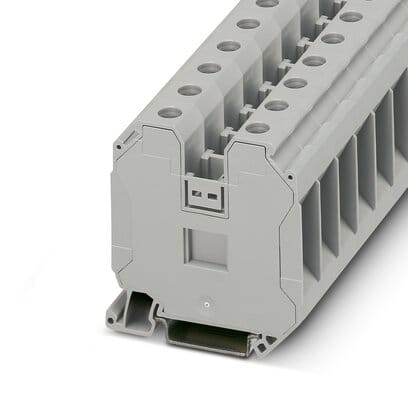

Phoenix Blocks - Phoenix Contact 3044225 UT 35 square mm Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189775594
Amperage - 125 Amp
Catalog Number - 3044225
Color - Gray
Conductor Size - 1.5 - 50 mm.
Packaging
1 ea
EAN
Part #
124428
Catalog #
3044225
Commercial reference
3044225
12-Digit UPC:
179189775594
Amperage:
125 Amp
Catalog Number:
3044225
Color:
Gray
Conductor Size:
1.5 - 50 mm.
Country of Origin:
Turkey
ERP_productname:
PHNX 3044225 UT 35
Family Brand Name:
Phoenix
Heights:
65.1 mm
Length:
61.2 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
3.2 - 3.7 N-m
Type:
Feed-Through
Voltage:
1000 Volt
Widths:
16 mm
SoneparProductId:
SKU_US_58523669
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm., cross section: 1.5 mm. - 50 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The flexible options for reducing bridging in the CLIPLINE complete system can be found in \"Accessories for the CLIPLINE complete modular terminal block system\; Easy and time-saving potential supply and distribution of large currents and cross sections up to 35 mm² with reducing bridges; The reducing bridges can be used to connect terminal blocks with different connection technologies, e.g., UT 35 screw terminal block with Push-in technology 2,5 Push-in terminal blocks, to form power blocks; Tested for railway applications - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
