Phoenix Blocks - Phoenix Contact 3044241 8000 Volt 16 to 2 AWG Green/Yellow Polyamide Screw Connection Ground Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189775808
Catalog Number - 3044241
Color - Green,Yellow
Country of Origin - Turkey
ERP_productname - PHNX 3044241 UT 35-PE
Packaging
1 ea
EAN
Part #
165554
Catalog #
3044241
Commercial reference
3044241
12-Digit UPC:
179189775808
Catalog Number:
3044241
Color:
Green,Yellow
Country of Origin:
Turkey
ERP_productname:
PHNX 3044241 UT 35-PE
Family Brand Name:
Phoenix Products
Heights:
65.1 mm
Length:
61.2 mm
Widths:
16 mm
SoneparProductId:
SKU_US_58458964

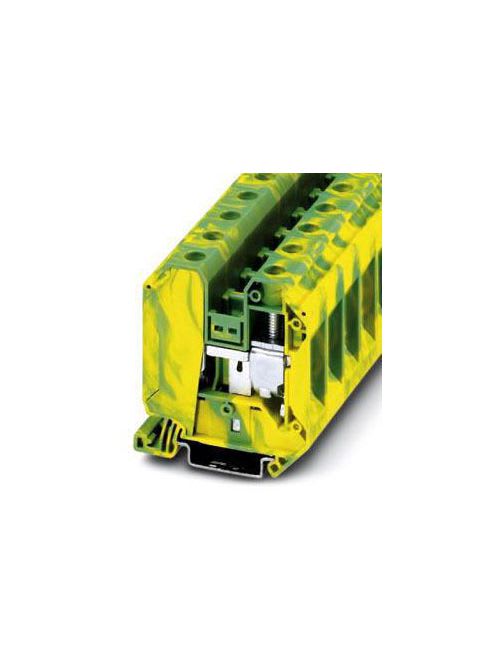

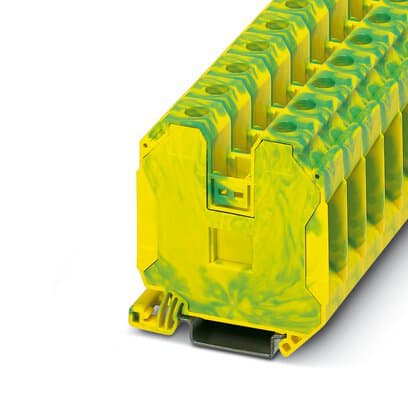

Ground modular terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 35 mm., cross section: 1.5 mm. - 50 mm., mounting type: NS 35/7,5, NS 35/15, color: green-yellow Features: The flexible options for reducing bridging in the CLIPLINE complete system can be found in \"Accessories for the CLIPLINE complete modular terminal block system\; Tested for railway applications - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
