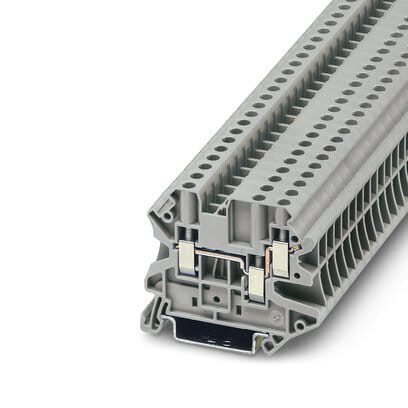

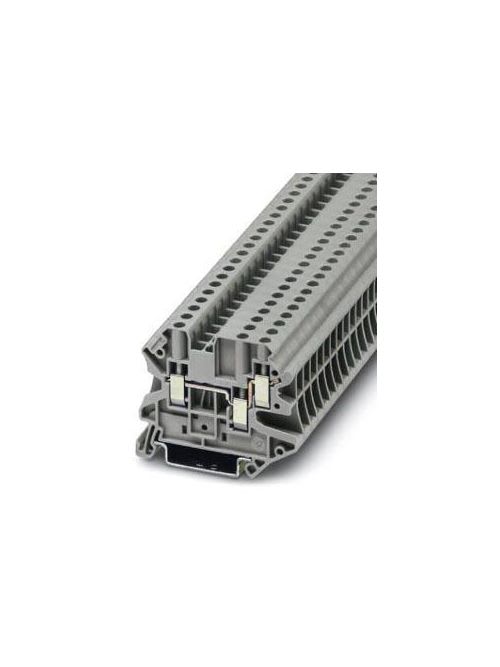

Phoenix Blocks - Phoenix Contact 3044364 500 Volt 32 Amp 26 to 10 AWG Gray Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560553766
Catalog Number - 3044364
Color - Gray
Country of Origin - Germany
ERP_productname - PHNX 3044364 UT 4-TWIN
Packaging
1 ea
EAN
Part #
180211
Catalog #
3044364
Commercial reference
3044364
12-Digit UPC:
463560553766
Catalog Number:
3044364
Color:
Gray
Country of Origin:
Germany
ERP_productname:
PHNX 3044364 UT 4-TWIN
Family Brand Name:
Phoenix Products
Heights:
46.9 mm
Length:
57.8 mm
Widths:
6.2 mm
SoneparProductId:
SKU_US_58458958
Feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, 1 level, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; User-friendly implementation of all potential branching tasks; Tested for railway applications - Approvals: VDE Zeichengenehmigung; cULus Recognized; EAC Ex; EAC; LR; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
