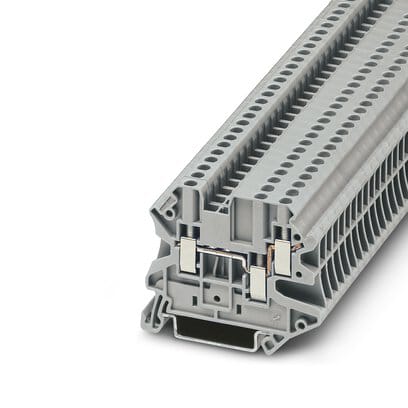

Phoenix Blocks - Phoenix Contact 3044513 UT 2 5-TWIN Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 463560554060
Amperage - 24 Amp
Catalog Number - 3044513
Color - Gray
Conductor Size - 0.14 - 4 mm.
Packaging
1 ea
EAN
Part #
175746
Catalog #
3044513
Commercial reference
3044513
12-Digit UPC:
463560554060
Amperage:
24 Amp
Catalog Number:
3044513
Color:
Gray
Conductor Size:
0.14 - 4 mm.
Country of Origin:
Germany
ERP_productname:
PHNX 3044513 UT 2.5-TWIN
Family Brand Name:
Phoenix
Heights:
46.9 mm
Length:
57.8 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.5 - 0.6 N-m
Type:
Feed-Through
Voltage:
500 Volt
Widths:
5.2 mm
SoneparProductId:
SKU_US_58460012
Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, 1 level, Rated cross section: 2.5 mm., cross section: 0.14 mm. - 4 mm., mounting type: NS 35/7,5, NS 35/15, color: gray Features: The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories; User-friendly implementation of all potential branching tasks; Tested for railway applications - Approvals: cULus Recognized; EAC Ex; EAC; IECEx; PRS; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
