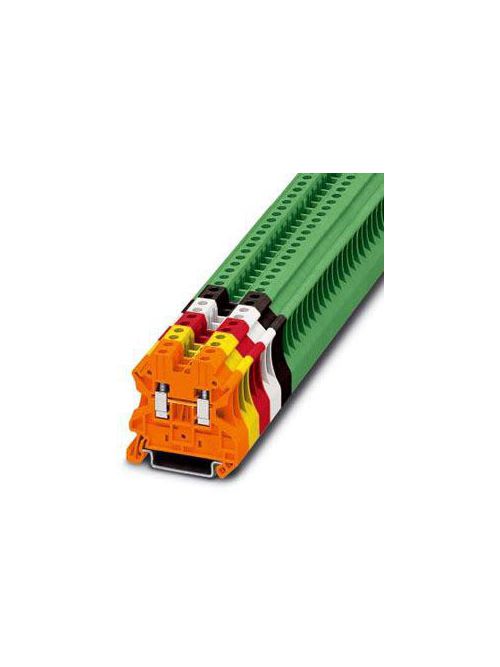

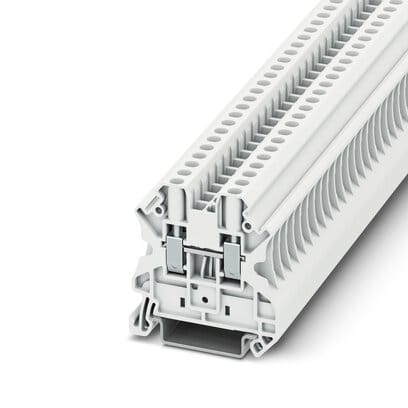

Phoenix Blocks - Phoenix Contact 3045130 1000 Volt 32 Amp 26 to 10 AWG White Polyamide Screw Connection Feed-Through Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189754704
Amperage - 32 Amp
Catalog Number - 3045130
Color - White
Country of Origin - Germany
Packaging
1 ea
EAN
Part #
126814
Catalog #
3045130
Commercial reference
3045130
12-Digit UPC:
179189754704
Amperage:
32 Amp
Catalog Number:
3045130
Color:
White
Country of Origin:
Germany
ERP_productname:
PHNX 3045130 UT 4 WH
Family Brand Name:
Phoenix
Length:
47.7 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.6 - 0.8 N-m
Type:
Feed-Through
Voltage:
1000 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_58458620
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm. - 6 mm., mounting type: NS 35/7,5, NS 35/15, color: white Approvals: VDE Gutachten mit Fertigungs.berwachung; cULus Recognized; EAC Ex; EAC; IECEx; PRS; IECEE CB Scheme; DNV GL; ATEX; RS; CSA; UL Recognized; cUL Recognized
