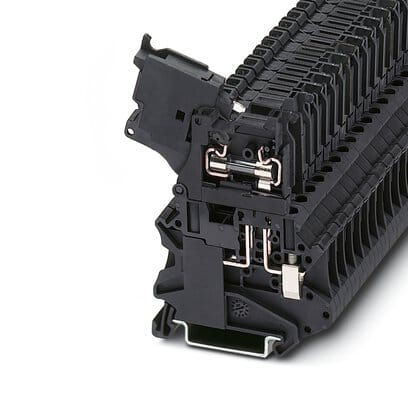

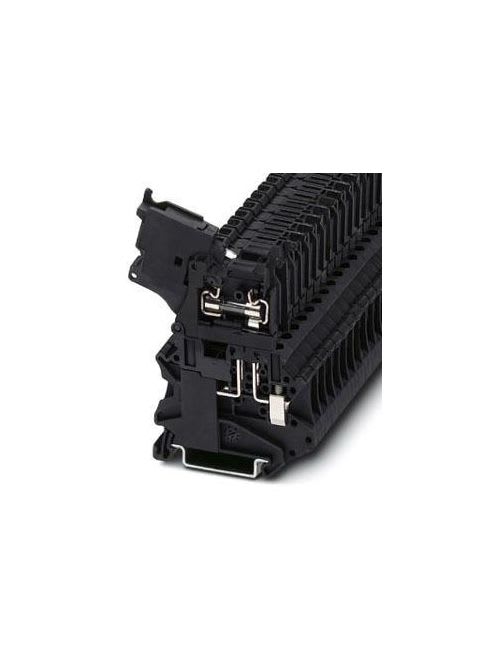

Phoenix Blocks - Phoenix Contact 3046032 500 Volt 6.3 Amp 26 to 10 AWG Black Polyamide Screw Connection Lever Fuse Modular Terminal Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 179189565782
Amperage - 6.3 Amp
Catalog Number - 3046032
Color - Black
Country of Origin - Germany
Packaging
50 ea
EAN
Part #
126831
Catalog #
3046032
Commercial reference
3046032
12-Digit UPC:
179189565782
Amperage:
6.3 Amp
Catalog Number:
3046032
Color:
Black
Country of Origin:
Germany
ERP_productname:
PHNX 3046032 UT 4-HESI (5X20)
Family Brand Name:
Phoenix
Length:
57.8 mm
Mounting Type:
NS 35/7.5, NS 35/15 DIN Rail
Torque Rating:
0.6 - 0.8 N-m
Voltage:
500 Volt
Widths:
6.2 mm
SoneparProductId:
SKU_US_58458708
Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 6.3 A, connection method: Screw connection, Rated cross section: 4 mm., cross section: 0.14 mm.- 6 mm., mounting type: NS 35/7,5, NS 35/15, color: black Features: An extremely compact design; Test connection on both sides in safety lever; Tested for railway applications - Approvals: EAC; LR; PRS; IECEE CB Scheme; DNV GL; KEMA-KEUR; RS; CSA; UL Recognized; cUL Recognized
